Basic diagnostics

Here you can find the list of basic diagnostic actions that may help you look for bug causes.

Engine#

This section describes Engine related diagnostic.

Engine health#

To check if the Engine Pods are in the Running state, run:

kubectl get pod -n capact-system -l app.kubernetes.io/name=engine

All the containers from Pods should be in the Running status. Restarts number higher than 1 may also indicate problems, e.g. not enough resource, lack of permissions, network timeouts etc.

Engine logs#

If the Engine is healthy, you should be able to track any bug by checking the logs. To check the logs, run:

kubectl logs -n capact-system -l app.kubernetes.io/name=engine -c engine

To check the logs since a given time, use the --since-time flag, for example:

--since-time=2020-03-30T10:02:08Z

Checking Action status#

To check the Action status, run:

kubectl get actions.core.capact.io ${ACTION_NAME} -n {ACTION_NAMESPACE} -ojsonpath="{.status}"

Checking Action status message#

To check the Action status message, run:

kubectl get actions.core.capact.io ${ACTION_NAME} -n {ACTION_NAMESPACE} -ojsonpath="{.status.message}"

Checking rendered Action workflow#

To check the rendered Action workflow before execution, run:

kubectl get actions.core.capact.io ${ACTION_NAME} -n {ACTION_NAMESPACE} -ojsonpath='{.status.rendering.action.args.workflow}'

NOTE: To display it in a more readable format, you can pipe it to jq.

Checking Action execution status#

An Action is executed via Argo Workflows. To check the execution status you can use either Argo CLI or Argo UI:

  • Using command line.

    Install the latest stable Argo CLI for version v2.x.x, and run:

    argo get {ACTION_NAME} -n {ACTION_NAMESPACE}

  • Using browser.

    By default, the Argo UI is not exposed publicly. You need to port-forward the Service to your local machine:

    kubectl -n capact-system port-forward svc/argo-argo-workflows-server 2746

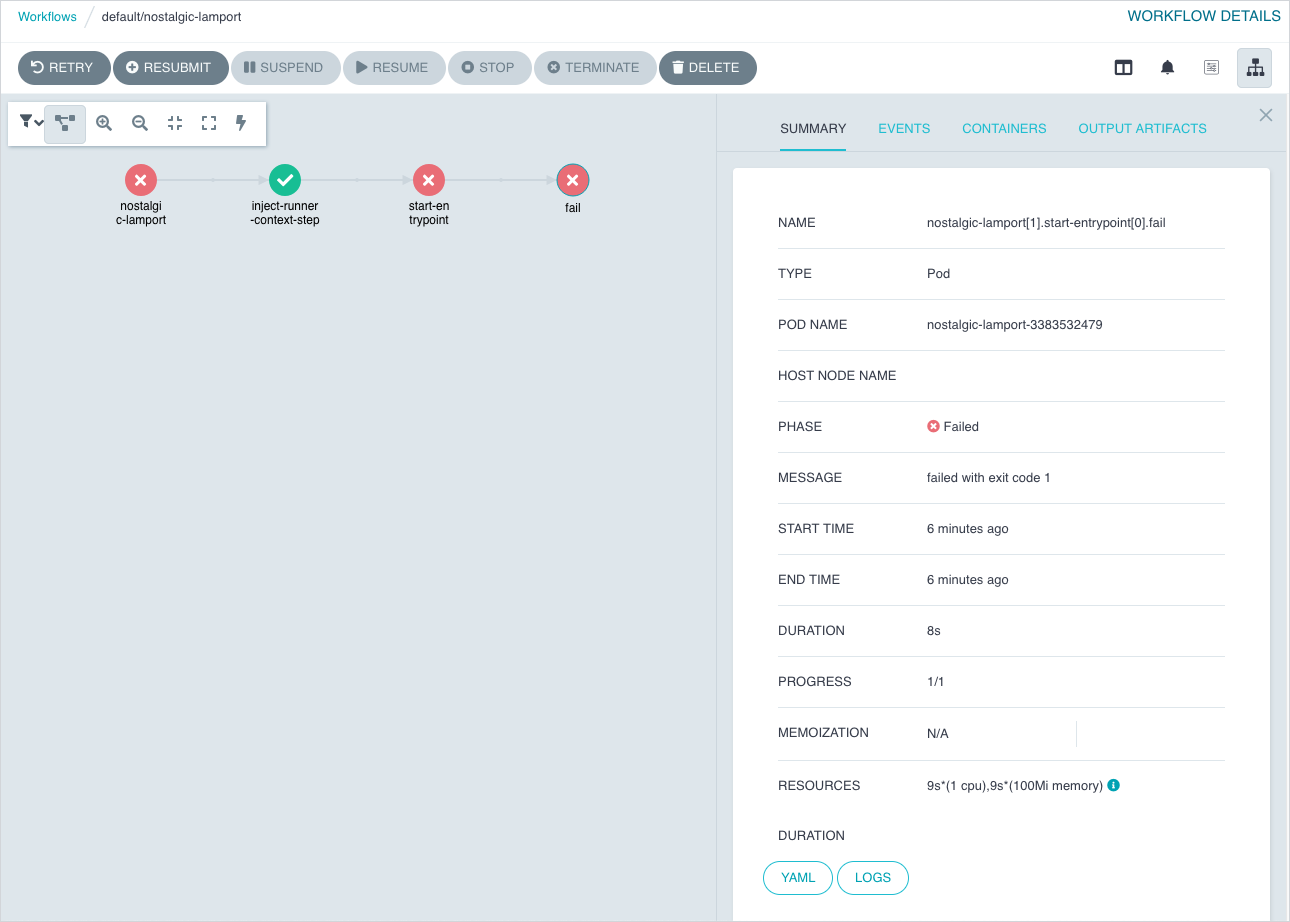

    Navigate to http://localhost:2746 to open Argo UI. Argo Workflow has the same name as the executed Action.

    argo_workflow_ui

Checking cluster Policy#

To check the cluster Policy definition, run:

kubectl get cm -n capact-system capact-engine-cluster-policy -oyaml

Gateway#

This section describes Gateway related diagnostic.

Gateway health#

To check if the Gateway Pods are in the Running state, run:

kubectl get po -n capact-system -l app.kubernetes.io/name=gateway

All the containers from Pods should be in the Running status. Restarts number higher than 1 may also indicate problems, e.g. not enough resource, lack of permissions, network timeouts etc.

Gateway logs#

If the Gateway is healthy, you should be able to track any bug by checking the logs. To check the logs, run:

kubectl logs -n capact-system -l app.kubernetes.io/name=gateway -c gateway

To check the logs since a given time, use the --since-time flag, for example:

--since-time=2020-03-30T10:02:08Z

Public Hub#

This section describes Public Hub related diagnostic.

Public Hub health#

To check if the Public Hub Pods are in the Running state, run:

kubectl get po -n capact-system -l app.kubernetes.io/name=hub-public

All the containers from Pods should be in the Running status. Restarts number higher than 1 may also indicate problems, e.g. not enough resource, lack of permissions, network timeouts etc.

Public Hub logs#

If the Public Hub is healthy, you should be able to track any bug by checking the logs. To check the logs, run:

kubectl logs -n capact-system -l app.kubernetes.io/name=hub-public -c hub-public

To check the logs since a given time, use the --since-time flag, for example:

--since-time=2020-03-30T10:02:08Z

Hub Populator logs#

If the Public Hub is healthy, you should be able to track any bug by checking the logs. To check the logs, run:

kubectl logs -n capact-system -l app.kubernetes.io/name=hub-public -c hub-public-populator

To check the logs since a given time, use the --since-time flag, for example:

--since-time=2020-03-30T10:02:08Z

Checking if Public Hub is populated#

  • Check if Hub Populator logs contain a message similar to: {"level":"info","ts":1620895282.3582015,"caller":"register/ocf_manifests.go:107","msg":"Populated new data","duration (seconds)":235.525841306}. It means that manifests were populated successfully. If you get an error similar to: error: container hub-public-populator is not valid for pod capact-hub-public-84cc74bc66-pmkhp it means that the Public Hub Populator is disabled. To enable it, run:

    helm repo add capactio https://storage.googleapis.com/capactio-stable-chartshelm upgrade capact capactio/capact -n capact-system --reuse-values --set hub-public.populator.enabled=true

  • Check if manifests can be fetched from the Public Hub. Install the latest stable Capact CLI, and run:

    capact hub interfaces search

    Successful response, should look similar to:

                               PATH                             LATEST REVISION                           IMPLEMENTATIONS+---------------------------------------------------------+-----------------+-----------------------------------------------------------------+  cap.interface.analytics.elasticsearch.install             0.1.0             cap.implementation.elastic.elasticsearch.install                                                                              cap.implementation.aws.elasticsearch.provision+---------------------------------------------------------+-----------------+-----------------------------------------------------------------+  cap.interface.automation.concourse.change-db-password     0.1.0             cap.implementation.concourse.concourse.change-db-password+---------------------------------------------------------+-----------------+-----------------------------------------------------------------+...

  • Check if manifest source is correct, run:

    kubectl -n capact-system get deploy capact-hub-public -o=jsonpath='{$.spec.template.spec.containers[?(@.name=="hub-public-populator")].env[?(@.name=="MANIFESTS_PATH")].value}'

    Check the go-getter project to understand URL format.

Local Hub#

This section describes Local Hub related diagnostic.

Local Hub health#

To check if the Local Hub Pods are in the Running state, run:

kubectl get po -n capact-system -l app.kubernetes.io/name=hub-local

All the containers from Pods should be in the Running status. Restarts number higher than 1 may also indicate problems, e.g. not enough resource, lack of permissions, network timeouts etc.

Local Hub logs#

If the Local Hub is healthy, you should be able to track any bug by checking the logs. To check the logs, run:

kubectl logs -n capact-system -l app.kubernetes.io/name=hub-local -c hub-local

To check the logs since a given time, use the --since-time flag, for example:

--since-time=2020-03-30T10:02:08Z

Checking if TypeInstance exists#

To check if TypeInstance exists. Install the latest stable Capact CLI, and run:

capact typeinstance get {TYPE_INSTANCE_ID}

Successful response, should look similar to:

            TYPE INSTANCE ID                          TYPE                                 USES                                  USED BY                  REVISION+--------------------------------------+---------------------------------+---------------------------------------+--------------------------------------+----------+  d9975239-6483-444b-b7de-b9f5a47a710d   cap.type.helm.chart.release        ——                                      ——                                           1+--------------------------------------+---------------------------------+---------------------------------------+--------------------------------------+----------+

Pod restart#

When Pods are unhealthy, or if the operation processing is stuck, you can restart the Pod using this command:

kubectl delete po -n capact-system -l app.kubernetes.io/name={COMPONENT_NAME}
